This device will absolutely change the way you perform rope rescue. The Scarab was born out of the need for a small, simple device that could easily control heavy rescue loads, as well as excel at pick offs, twin rope systems and other general rescue techniques.
Description
This device will absolutely change the way you perform rope rescue (see videos linked below). The Scarab® represents five years of research and testing by Rick Lipke and the design team at Conterra. It was born out of the need for a small, simple device that could easily control heavy rescue loads, as well as excel at pick offs, twin rope systems and other general rescue techniques. The Scarab® does all this and more. With two models available, the Scarab® is the perfect choice for both Fire/Rescue and back country rescue environments:

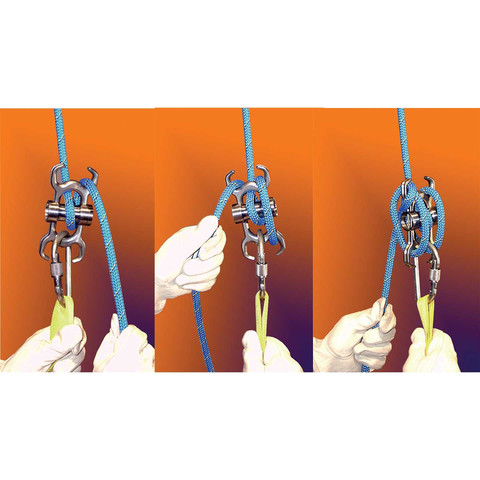

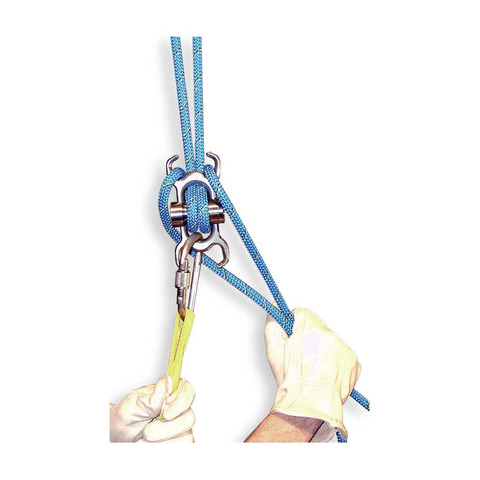

• Incredibly strong • Does not twist the rope • Instantly adjustable friction (just wrap a horn) • Lower 600 lb loads with two fingers • Super easy lock off • Easy to use, right or left handed • Single and double rope capable • Attach rope without unclipping from anchor

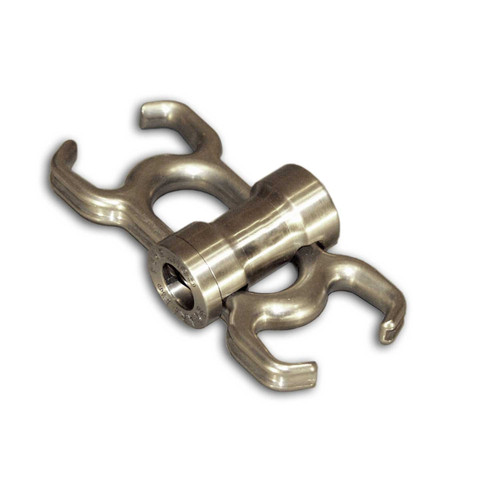

The Scarab® TI Ultra light alpine rescue tool: Machined from solid Titanium plate. Works with 6mm to 11 mm rope. Weight: 185g (6.6 oz)

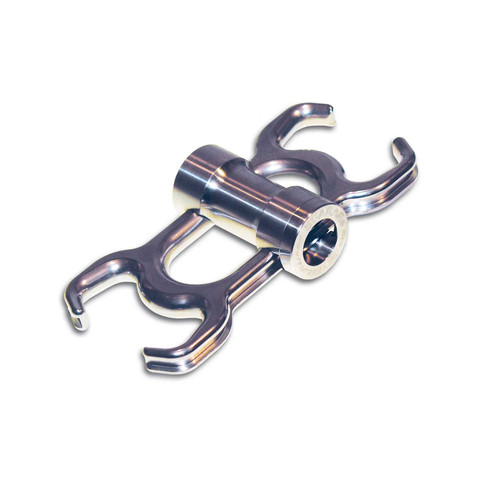

The Scarab® FR Ultra versatile general rescue tool. Machined from solid 303 stainless plate. Works with 9mm to 13 mm rope. Weight: 385g (13.8 oz) meets NFPA 1983 (06 ED) “G” (general use) FOR 12.5mm ROPE -The Scarab® is light and strong.
The Scarab has endured over five years of drop and slow pull testing as well as undergoing extensive heat and wear studies utilizing Conterra’s Capstan Test Bed. -The frame and crossbar’s strength is greater than 40kN. In real world tests with Nylon rescue ropes, the ropes fail at the nose of the Scarab® at about their knotted strength (just like most other descent control devices). When pulling a 12.7mm rescue rope on a tied off Scarab®, the rope breaks at about 27kN, which easily exceeds the 22kN strength rating that NFPA calls out for to rate class “G” for descent control devices. In addition to a battery of slow pull and drop tests, the Scarab® has undergone extensive heat and wear studies. One device was tested by pulling over a mile of dirty rope through it under rescue sized tension, with temperature reading thermocouples being monitored at several locations during pulls. At 2kN of tension, and a lowering speed of 10M per minute, the Scarab® maintained a frame temperature at about 100 degrees C. To our knowledge, the Scarab® is the only descent control device to have been tested to this degree.
Scarab® is a registered trademark of Conterra Inc. All rights reserved. Built by Conterra Precision, our own in house ISO 9001 certified facility. We truly believe the Scarab® will outperform any other rescue descent control device made.
Additional information
| Material | Stainless Steel, Titanium |
|---|
