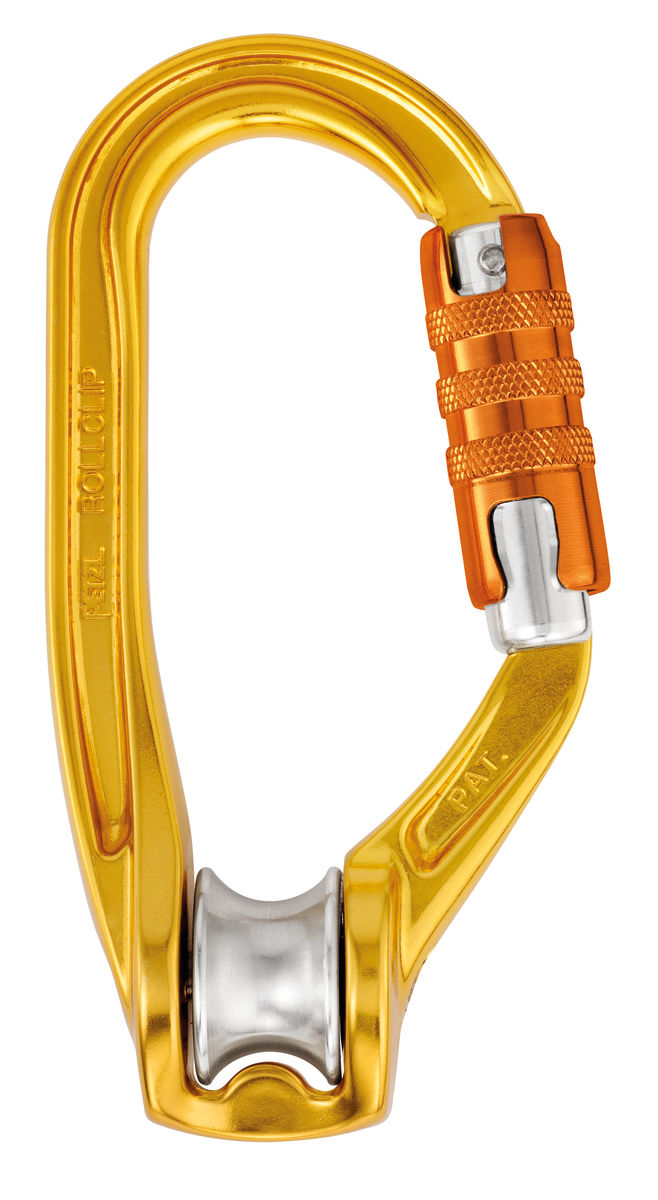

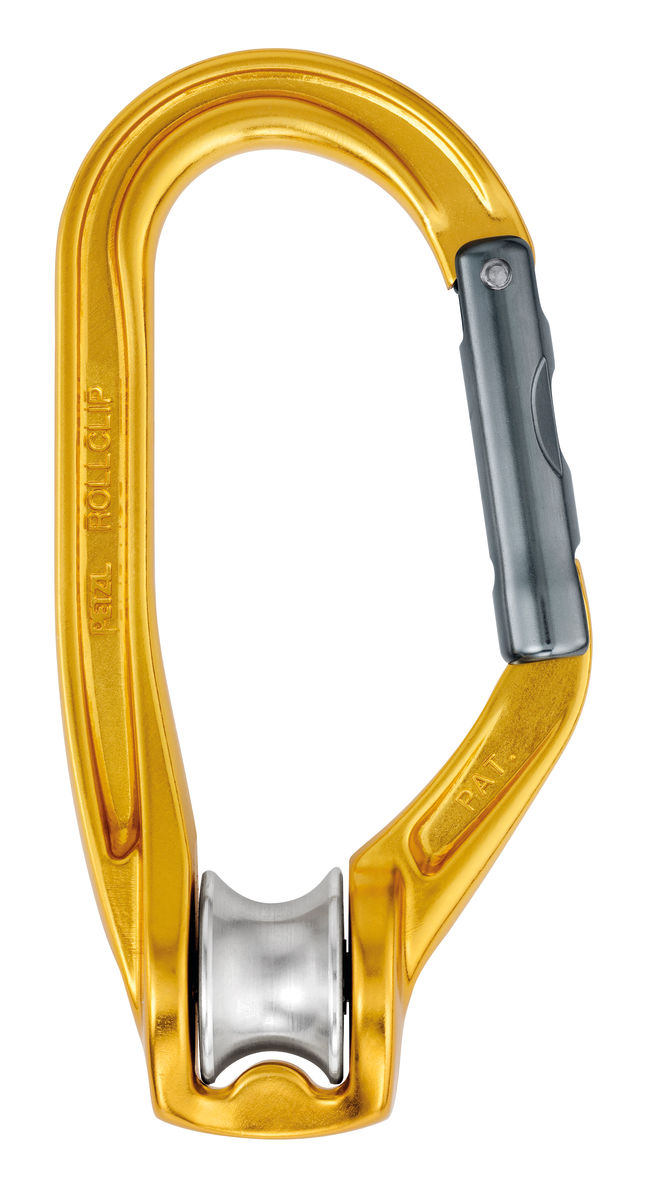

Pulley carabiner, available in versions with or without TRIACT-LOCK locking system. The version with the TRIACT-LOCK locking system can be used to minimize friction on the work rope or to install redirects. The non-locking version is designed for use as a directional point on the ASCENSION handled rope clamp during short rope ascents.
Description
Pulley carabiner, available in versions with or without TRIACT-LOCK locking system. The version with the TRIACT-LOCK locking system can be used to minimize friction on the work rope or to install redirects. The non-locking version is designed for use as a directional point on the ASCENSION handled rope clamp during short rope ascents.
Description
- Facilitates manipulations:
– Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place
– gate opening on the pulley side facilitates installation of the rope when the pulley is fixed to the anchor
– may be used with a CAPTIV positioning bar to favor loading of the carabiner along its major axis and to limit the risk of it flipping
– sheave mounted on sealed ball bearings for excellent efficiency - Available with or without locking system:
– with TRIACT-LOCK locking system: may be used to minimize friction on the work rope while keeping set-ups simple. May also be used to install redirects.

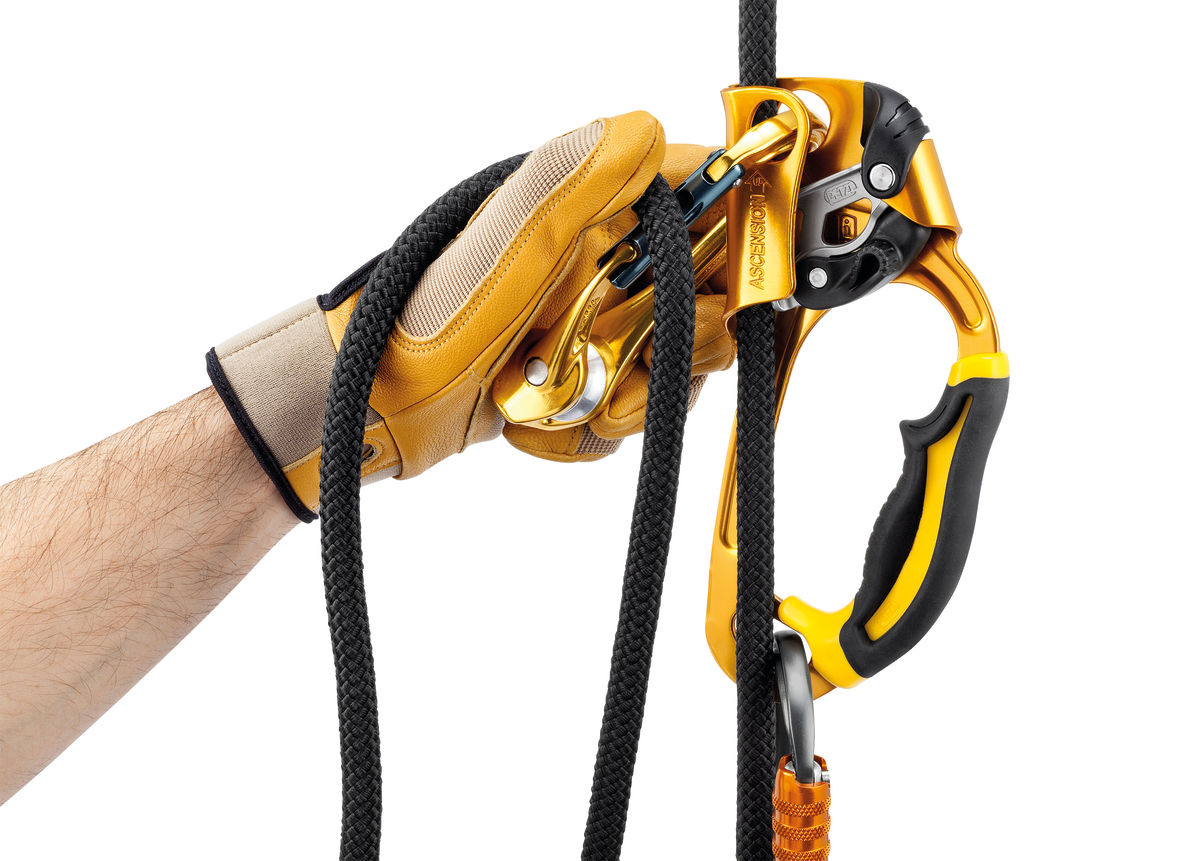

– without locking system: may be used as a directional point on the ASCENSION handled rope clamp during short rope ascents - H profile of carabiner:
– ensures an improved strength-to-weight ratio
– protects markings from abrasion
Specifications
- Material(s): aluminum
- Min. rope diameter: 7 mm
- Max. rope diameter: 13 mm
- Sheave diameter: 18 mm
- Maximum working load: 2 x 2 = 4 kN
- Efficiency: 85 %
- Major axis strength: 20 kN
- Minor axis strength: 8 kN
- Open gate strength: 7 kN
References
| References | P74 TL | P74 |
|---|---|---|
| Locking system | TRIACT-LOCK | without locking system |
| Weight | 115 g | 105 g |
| Certification(s) | CE EN 362, CE EN 12278, EAC | CE EN 12275, CE EN 12278, EAC |
| Gate opening | 22 mm | 25 mm |
| Guarantee | 3 years | 3 years |
| Packing | 1 | 1 |
Additional information
| Locking Mechanism | Non-Locking, Triact-Lock |
|---|
