The rockD is the carabiner of choice when seeking the highest strength in a standard-sized aluminum frame. Available in the ORCA, Auto-lock, Screw-lock and other gate options, the rockD carabiner serves the broadest range of specialized uses
Description
The rockD is the carabiner of choice when seeking the highest strength in a standard-sized aluminum frame. Available in the ORCA, Auto-lock, Screw-lock and other gate options, the rockD carabiner serves the broadest range of specialized uses. The rockD in non-lanyard versions, features a flattened profile with an i-beam profile at the bottom and top bends, giving the carabiner a sleek profile, while providing low weight and high strength characteristics.
- Narrow asymmetric “D” shape optimizes MBS
- High strength-to-weight ratio in standard size carabiner
- Snag-resistant keylock nose design
- Large and ergonomic angled gate opening
- Machined frame ensures tight tolerances and smooth operation
View Specs for All Aluminum Carabiners
Carabiner Tech Notice (.pdf)
AVAILABLE ON THE ROCK D

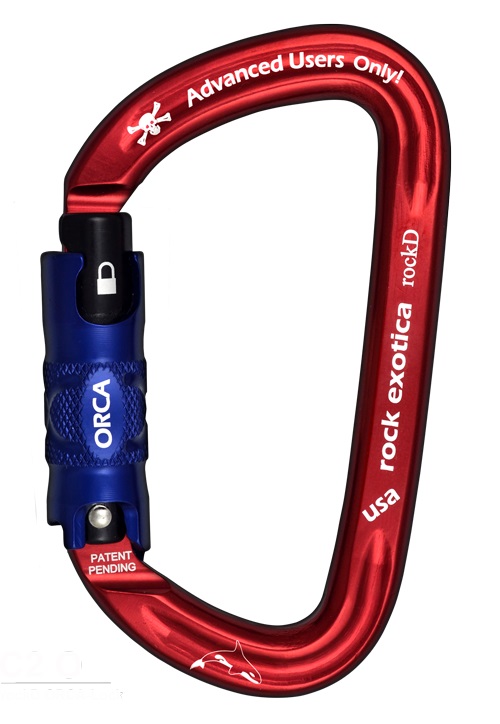

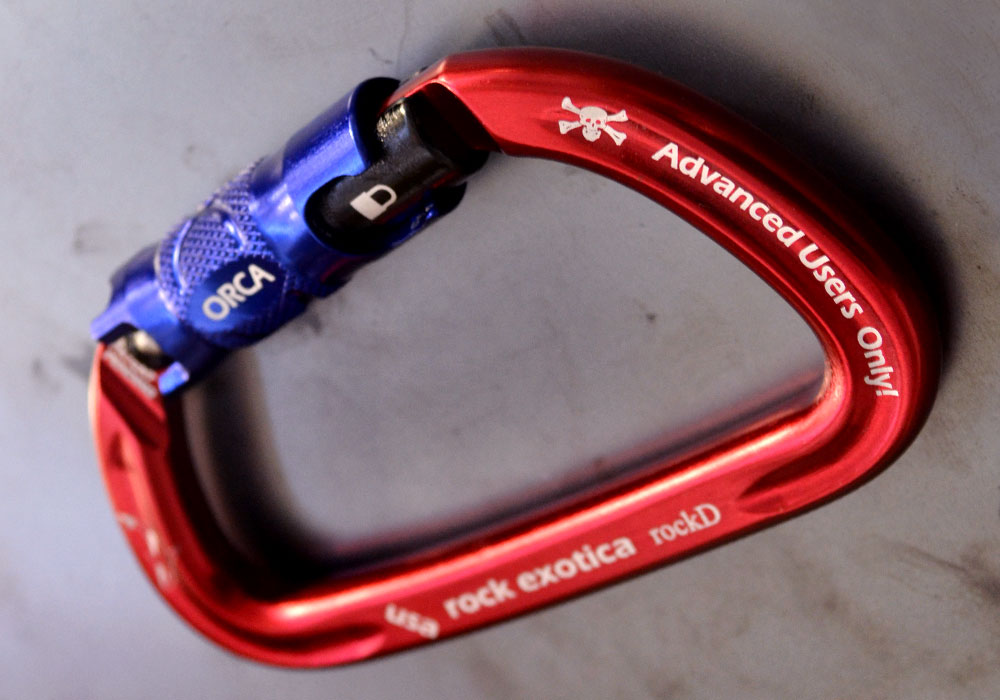

ORCA-LOCK
Lift up, twist and open like a 3-stage gate. Can be set to remain in the unlocked position.
AUTO-LOCK
Pull down toward palm, twist and open. 3-stage mechanism.

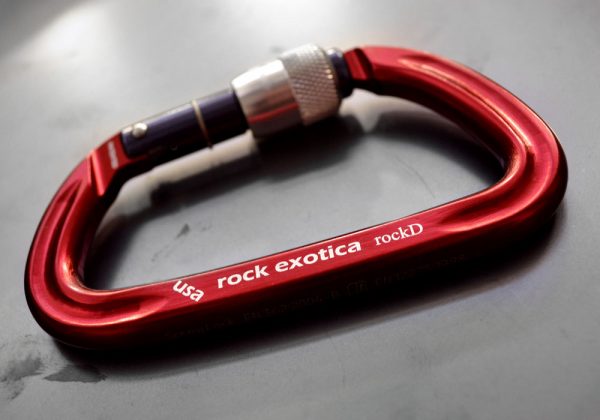

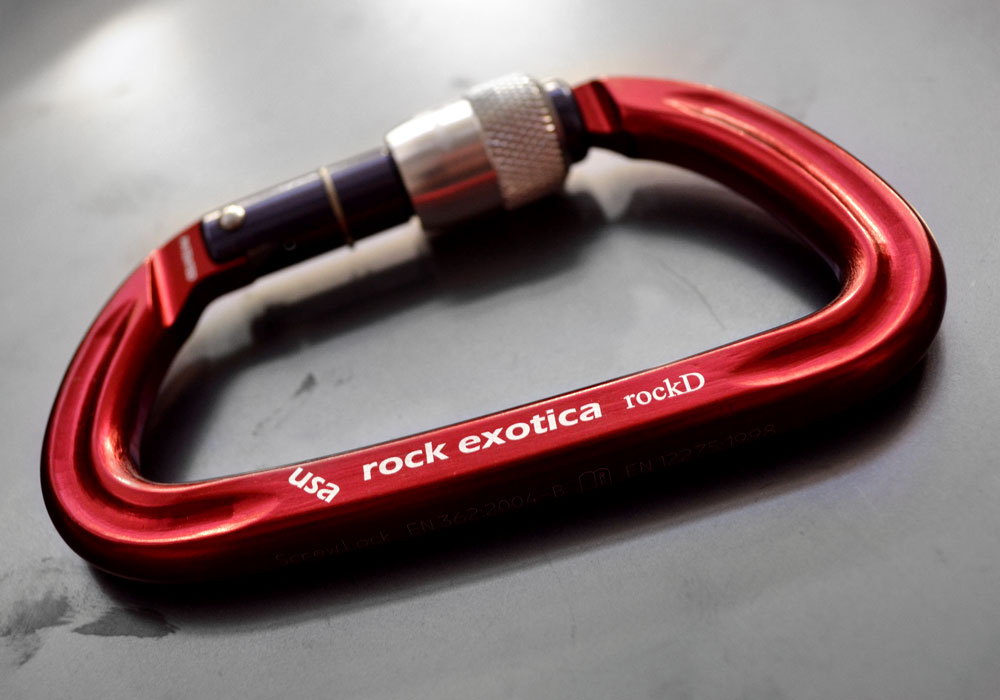

SCREW-LOCK
Spin gate downward and open.
2-stage mechanism.

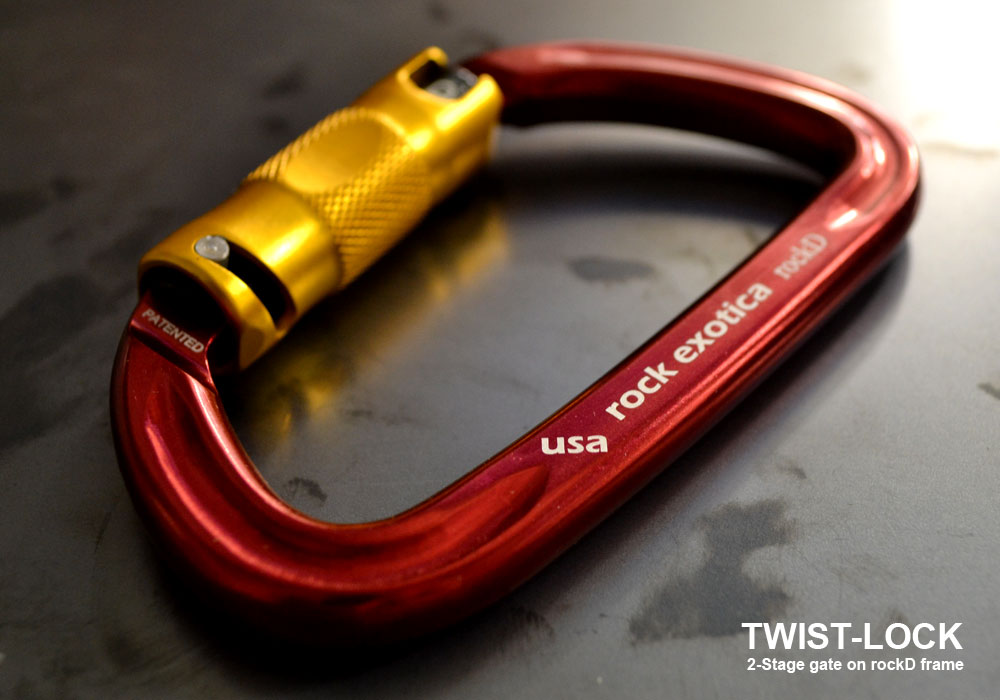

TWIST-LOCK
Lift up, twist and open like a 3-stage. Can be set to remain in the unlocked position.

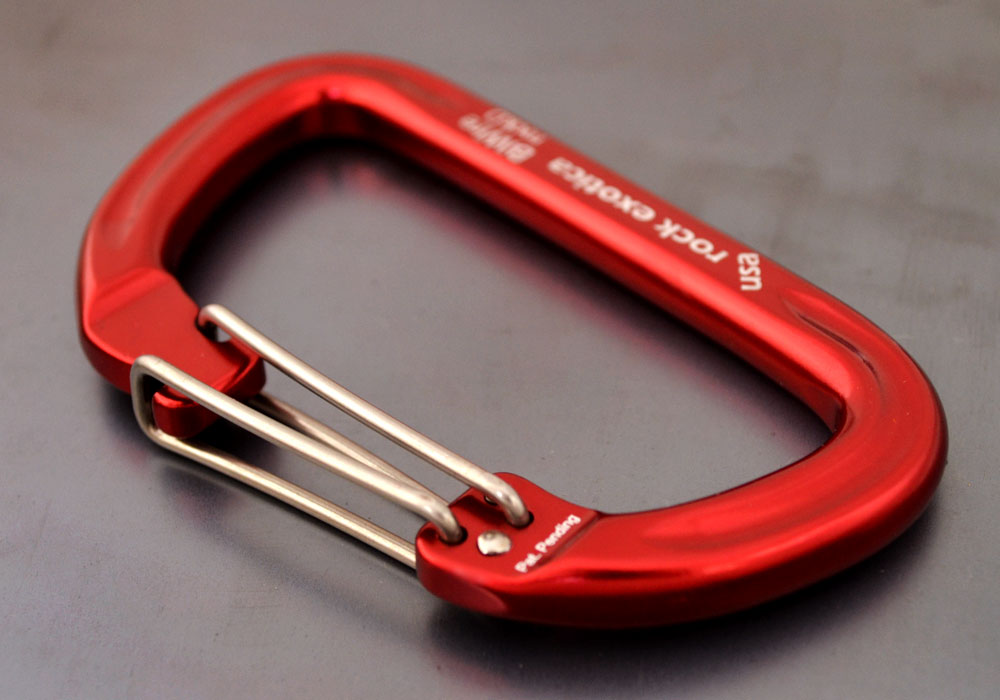

Bi-Wire
Spread the wire gates open with your index finger and thumb.
ROCK D SPECS BY MODEL
| Gate | rockD ORCA | rockD Auto | rockD Screw | rockD Twist | Lanyard Pin | BiWire |
| Ref # | C2 O | C2 A | C2 S | C2 T | C2 LPA | C2 BW |
|---|---|---|---|---|---|---|
| MBS-Major | 29kN | 29kN | 29kN | 29kN | 30kN | 30kN |
| MBS-Minor | 11kN | 11kN | 9kN | 11kN | 11kN | 11kN |
| MBS-Open | 9kN | 9kN | 9kN | 9kN | 10kN | 9kN |
| Gate Opening | .95″ (24 mm) | .95″ (24 mm) | .95″ (24 mm) | .95″ (24 mm) | .95″ (24 mm) | 1.1″ (28 mm) |
| Weight | 2.85 oz (80 gm) | 2.85 oz (80 gm) | 2.61 oz (73 gm) | 2.85 oz (80 gm) | 3.52 oz (99 gm) | 2.40 oz (68 gm) |
| Height | 4.5″ (114 mm) | 4.5″ (114 mm) | 4.5″ (114 mm) | 4.5″ (114 mm) | 4.5″ (114 mm) | 4.5″ (114 mm) |
| Width | 2.8″ (71 mm) | 2.8″ (71 mm) | 2.8″ (71 mm) | 2.8″ (71 mm) | 2.8″ (71 mm) | 2.8″ (71 mm) |
| Color | Red/Black | Red/Black | Red/Black | Red | Gold | Red |
| Certification | CE/UIAA | CE/UIAA | CE/UIAA | CE/UIAA | CE/UIAA |
Additional information
| Locking Mechanism | Auto Lock, ORCA Lock, Screw Gate, Twist Lock (2 stage) |
|---|---|
| Colour | Black, Red |
