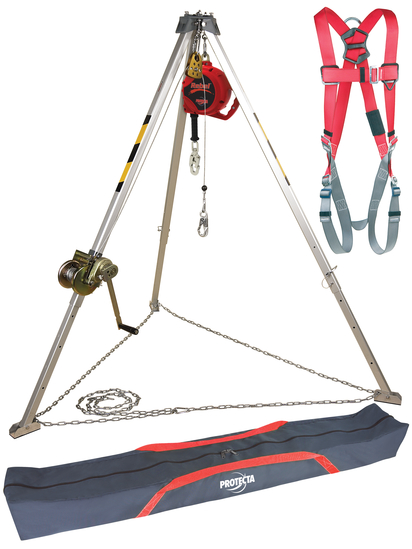

8 ft. (2.4 m) AK105A aluminum tripod with AK205CG 50 ft. (15 m) galvanized winch, AK020A1 pulley, 3590552 Rebel™ 50 ft. (15 m) galvanized self retracting lifeline, 1191201 PRO™ harness and AK067A tripod bag.
-
Telescoping adjustable locking legs
-
50 ft. (15 m) 3/16″ (5mm) galvanized steel cable lifeline
Description
When it comes to confined space entry/rescue, it is essential that equipment operates perfectly and quickly. Lightweight, portable Protecta® aluminum tripods are ideal for confined space manhole entry and retrieval. They’re easily transported from one location to another and can be set-up by one worker. Attach one or two mechanical devices such as a winch or 3-way self retracting lifeline and you’re ready to go. Our tripods are loaded with features such as locking legs, simple detent pin style adjustment, quick-mount mechanical device bracket, safety chain to prevent movement and skid resistant tread plate soles on feet.
-
Telescoping adjustable locking legs
Simple detent pin adjustment in 3 in. (7.6 cm) increments offers quick and easy set-up allowing you to custom fit your work space.
-
50 ft. (15 m) 3/16″ (5mm) galvanized steel cable lifeline
Abrasion resistant and extremely durable lifeline construction provides added field longevity.
Specifications:
| Capacity | 310 lbs. (140 kg) Personnel / 350 lbs. (159 kg) Materials |
| Brand | PROTECTA® |
| Sub Brand | PRO™ |
| Size | 50 ft. (15.2 m) |
| Install Type | Portable |
| Lifeline Type | Galvanized Cable |
| iSafe Equipped | No |
| Lifeline Length | 50 ft. (15.2 m) |
| Lifeline | 3/16″ (5mm) dia. 7×19 Galvanized Aircraft Wire Rope |
| Hook | Zinc Plated Steel |
| Label | Polyester, Stamped |
| Winch/SRL Housing | Cast Aluminum, Zinc Plated Steel |
| Model | 8308053 |
| Other Standards | ANSI Z117.1-1995, OSHA 1910.66, OSHA 1910.146, OSHA 1926.502, Capital Safety Gen. Mfg. Req. |
| Physical Weight | 86.70 lbs (39.3kg) |
| Product Styles | Complete System |
| Product Types | Tripods and Systems |
| Standards | CSA A259.2.2 Type 2, Capital Safety Gen. Mfg. Req. |
