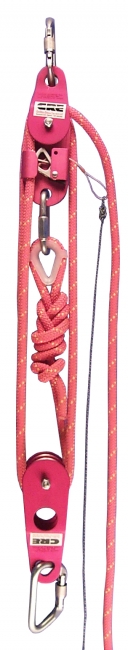

The 4:1 mechanical advantage hauling/raising kit is ideal for confined space extrication.
Description
The 4:1 mechanical advantage hauling/raising kit is ideal for confined space extrication.
The system comes with a built-in automatic safety cam which allows the rope to travel in one direction only, locking-off the rope and preventing the system from lowering if the haulers need to stop or become incapacitated.
An attached tag line allows remote control of the cam, making it possible to place the Haul Safe unit in a remote location and still be able to release the cam to permit lowering.
The Haul Safe includes a safety catch that can hold the cam in the open position if desired so it can be used as a double sheave pulley with the rope able to run free in both directions. The swing cheek design of the side plates allows the pulley to be placed anywhere on the rope.
The pulley sheaves are equipped with Oilite bushings to assure smooth performance under the most demanding conditions.
The Skedco Hauler Haul Safe frame is constructed of anodized, high strength aluminum alloy.
Meets NFPA, ANSI, OSHA, CSA current and proposed regulations.
NOTE :Rope and rope bag must be purchased as separate items as your needs dictate.
Kits come fully assembled with your desired length of rope and corresponding size rope bag . Carabiners on the CRE Industry model 4:1 kit have captive bars installed to insure system cannot be dis-assembled.
Contents:
1 – Double sheave Skedco Hauler 3″ Haul Safe pulley
1 – 3″ Skedco Double sheave pulley/becket
1 – 10mm Oval steel link
1- 7/16″ to 1/2″ Plastic rope thimble
2 – DMM steel Kwik locking carabiners w/ captive bar
