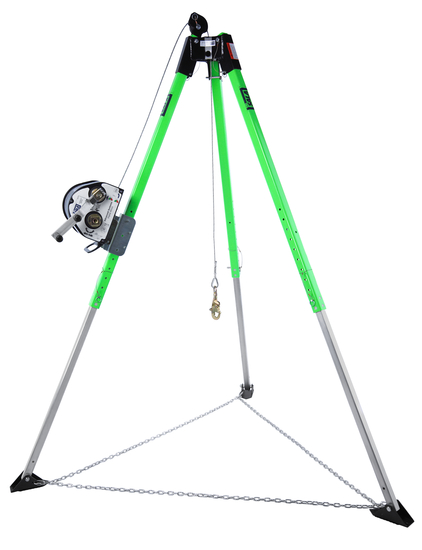

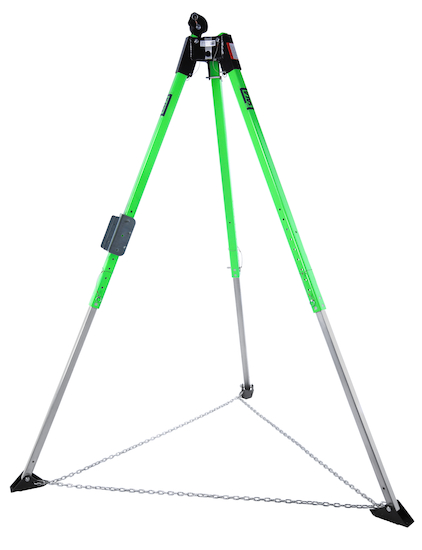

7 ft. or 10 ft. UCT-300 aluminum tripod with adjustable locking legs, safety chain, safety shoes, top pulley and quick-mount bracket.
-
7 ft or 10 ftUCT-300 aluminum tripod
-
Telescoping adjustable locking legs
-
Built-in pulley system – can accommodate up to three pulleys
-
Rubber safety shoes with spiked edges
-
Safety leg support chain
-
Integrated 5,000 lb. (22 kN) anchor points
-
Quick connect winch/SRL mount bracket
-
Order mechanical winch/SRL device(s) separately
Description
-
7 ft or 10 ft UCT-300 aluminum tripod lightweight and durable aluminum construction is easy to transport, set-up and use and will stand up to the elements for extended longevity.
-
Telescoping adjustable locking legs simple detent pin adjustment in 3 in. (7.6 cm) increments offers quick and easy set-up allowing you to custom fit your work space.
-
Built-in pulley system – can accommodate up to three pulleys provides an easy way to rout your mechanical devices lifeline into the confined space, and keeps it centered.
-
Rubber safety shoes with spiked edges offers a non-slipping design for both flat surfaces and uneven terrains for complete safety.
-
Safety leg support chain prevents movement of the legs when the system is under load providing added support, strength and safety.
-
Integrated 5,000 lb. (22 kN) anchor points holes on each side of the tripod head will accommodate standard carabiners and are ideal for attachment of secondary or back-up systems.
-
Quick connect winch/SRL mount bracket easily attach a mechanical device such as winch or 3-way self retracting lifeline directly to the tripod leg.
-
Order mechanical winch/SRL device(s) separately various winch and 3-way self retracting lifeline configurations and options are available to suit most site requirements for added peace of mind.
Specification:
Capacity | 450 lbs. (204 kg) |
Brand | DBI-SALA® |
Sub Brand | Advanced™ |
Size | 7 ft. (2.1 m) |
Install Type | Portable |
iSafe Equipped | No |
Length | 7 ft. (2.1 m) |
Label | Mylar with Laminate |
Model | 8513158 |
Other Standards | ANSI Z117.1-1995, OSHA 1910.66, OSHA 1910.146, OSHA 1926.502, Capital Safety Gen. Mfg. Req. |
Physical Weight | 7 Foot: 53.00 lbs (24.0kg), 10 Foot: 80.50 lbs (36.5kg) |
Product Styles | Tripod |
Product Types | Tripod System |
Standards | Capital Safety Gen. Mfg. Req. |
Additional information
Height | 10 Foot, 7 Foot |
---|
