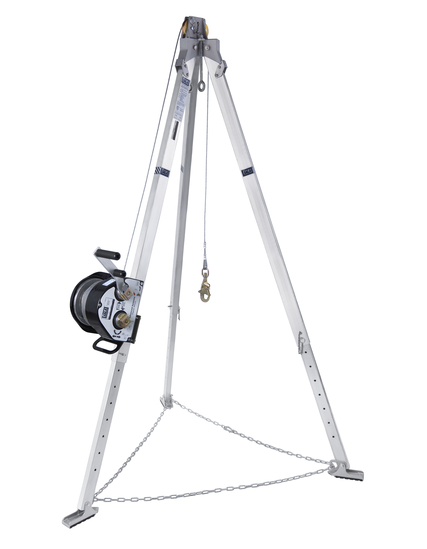

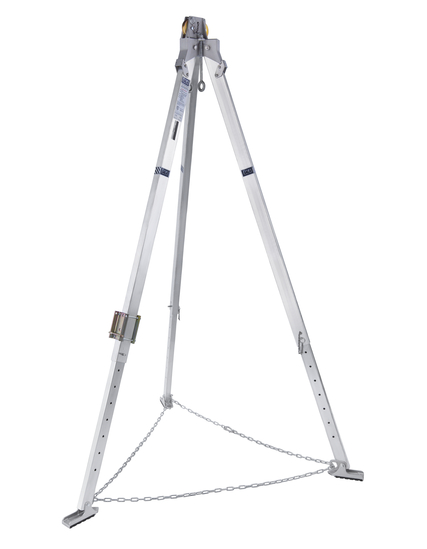

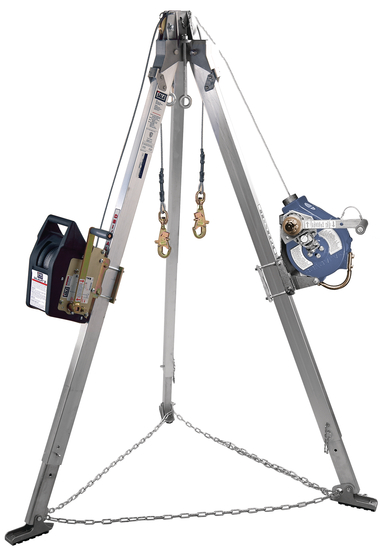

7 ft. (2.1 m) or 9 ft. (2.7 m) aluminum tripod with adjustable locking legs, safety chain, safety shoes, top pulley and quick-mount bracket.
-
7 ft. (2.1 m) or 9 ft. (2.7 m) aluminum tripod
-
Telescoping adjustable locking legs
-
Built-in pulley system
-
Rubber safety shoes with spiked edges
-
Safety leg support chain
-
Integrated 5,000 lb. (22 kN) eyebolt anchor points
-
Quick connect winch/SRL mount bracket
-
Equipped with i-Safe™
-
Order mechanical winch/SRL device(s) separately
Description
-
7 ft or 9 ft aluminum tripod lightweight and durable aluminum construction is easy to transport, set-up and use and will stand up to the elements for extended longevity.
-
Telescoping adjustable locking legs simple detent pin adjustment in 3 in. (7.6 cm) increments offers quick and easy set-up allowing you to custom fit your work space.
-
Built-in pulley system provides an easy way to rout your mechanical devices lifeline into the confined space, and keeps it centered.
-
Rubber safety shoes with spiked edges offers a non-slipping design for both flat surfaces and uneven terrains for complete safety.
-
Safety leg support chain prevents movement of the legs when the system is under load providing added support, strength and safety.
-
Integrated 5,000 lb. (22 kN) eyebolt anchor points two eyebolts designed to hand plumb regardless of surface are ideal for attachment of secondary or back-up systems.
-
Quick connect winch/SRL mount bracket easily attach a mechanical device such as winch or 3-way self retracting lifeline directly to the tripod leg.
-
Equipped with i-Safe™ integrated RFID identification tag for recording and storing information on inspections and tracking safety equipment.
-
Order mechanical winch/SRL device(s) separately various winch and 3-way self retracting lifeline configurations and options are available to suit most site requirements for added peace of mind.
Specifications:
| Capacity | 350 lbs. (159 kg) |
| Brand | DBI-SALA® |
| Sub Brand | Advanced™ |
| Size | 7 ft. or 9 ft |
| Install Type | Portable |
| Velocity Ship | Yes |
| iSafe Equipped | Yes |
| Length | 7 ft. or 9 ft |
| Label | Mylar with Laminate |
| Model | 8000014 |
| Other Standards | ANSI Z117.1-1995, OSHA 1910.66, OSHA 1910.146, OSHA 1926.502, U.L. Classified 41Y7, Capital Safety Gen. Mfg. Req. |
| Physical Weight | 43.00 lbs (19.5kg) |
| Product Styles | Tripod |
| Product Types | Tripod System |
| Standards | Capital Safety Gen. Mfg. Req. |
Additional information
| Height | 7 Foot, 9 Foot |
|---|
