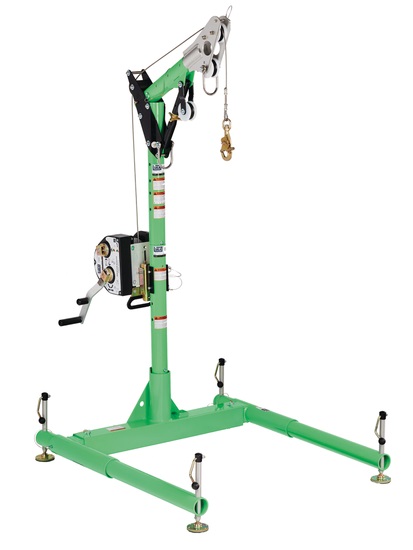

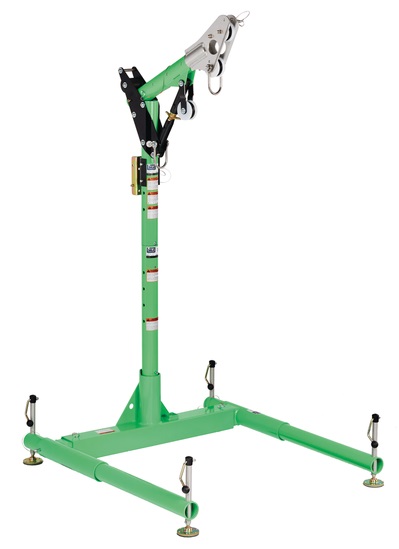

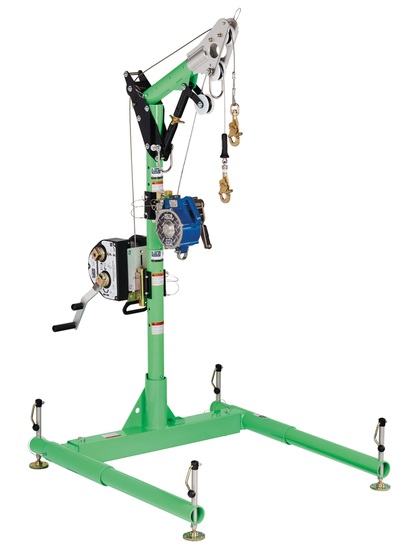

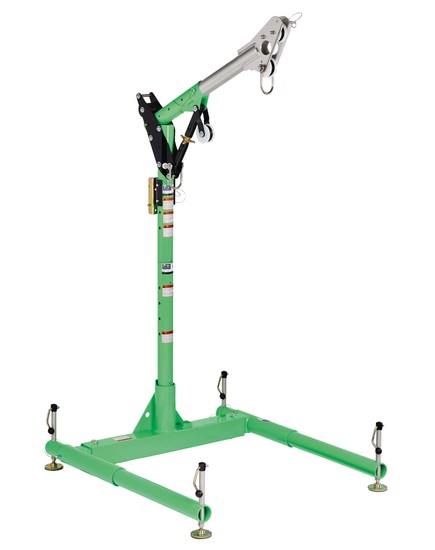

5-piece davit hoist system with 8518001 11-1/2 in. to 27-1/2 in. (29.2 to 69.8 cm) adjustable offset davit mast, 8518002 33 in. (83.8 cm) lower davit mast extension and 8518005 3-piece portable base.
-
5-piece davit hoist system
-
Integrated 5,000 lb. (22 kN) mast anchorage point
-
Fall arrest rated in all davit offset mast positions
-
Adjustable vertical height of 33 in. to 43 in. (83.8 to 109.2 cm)
-
Telescoping reach of 11-1/2 in. to 27-1/2 in. (29.2 to 69.8 cm)
-
Adjustable offset upper davit mast (model 8518001)
-
Built-in primary and secondary pulleys
-
Quick mount winch/SRL bracket
-
Detent and knob style adjustment
-
33 in. (83.8 cm) lower davit mast extension (model 8518002)
-
Combine up to 2 extensions
-
Extends your davit mast height
-
3-piece adjustable portable base (model 8518005)
-
Base width adjusts from 37 in. to 64 in. (94 to 162.6 cm)
-
Unique foot level and height adjustment system
-
Lightweight, corrosion resistant aluminum construction
Description
-
5-piece davit hoist system includes everything needed (except winch/SRL) to build your confined space rescue and work support system.
-
Integrated 5,000 lb. (22 kN) mast anchorage point provides user with a secondary ANSI rated fall arrest anchorage point for maximum worker safety.
-
Fall arrest rated in all davit offset mast positions engineered system incorporates a fall arrest rated anchorage point with a minimum strength rating of 1,800 lb. (8 kN).
-
Adjustable vertical height of 33 in. to 43 in. (83.8 to 109.2 cm) eliminates the need for custom length masts and extensions allowing one system to cover a range of different confined space scenarios.
-
Telescoping reach of 11-1/2 in. to 27-1/2 in. (29.2 to 69.8 cm) adjustable length of davit ensures mechanical device lifeline(s) are always centered over the confined space.
-
Adjustable offset upper davit mast (model 8518001) an ideal confined space support structure for one or more mechanical devices and your choice of Advanced™ portable or permanent bases.
-
Built-in primary and secondary pulleys route lifelines of two mechanical devices for smooth, efficient rescue and work support operations.
-
Quick mount winch/SRL bracket simple detent style bracket offers extremely fast and safe mechanical device installation.
-
Detent and knob style adjustment allows user to adjust system quickly and easily to site configuration without tools and collapse for transport and storage.
-
33 in. (83.8 cm) lower davit mast extension (model 8518002) provides the flexibility to change the overall mast height of your system.
-
Combine up to 2 extensions attach 2 extensions together in any combination to customize your davit system to fit your changing work area for ultimate flexibility.
-
Extends your davit mast height increase the overall anchorage height of your davit mast – models available for 21 in. (53.3 cm) up to 57 in. (144.8 cm) for added versatility.
-
3-piece adjustable portable base (model 8518005) lightweight multi-piece base sets up and breaks down quickly making it deal when you need to move and access various confined space areas.
-
Base width adjusts from 37 in. to 64 in. (94 to 162.6 cm) This system accommodates a wider range of confined space entry needs when compared to tripods because of its unique adjustable base.
-
Unique foot level and height adjustment system allows user to adjust each side of the system independently from 5 in. to 11 in. (12.7 to 28 cm) to easily level over the confined space.
-
Lightweight, corrosion resistant aluminum construction. Our davit systems are a fraction of the weight when compared to steel and offer quick and easy transport, set-up, dismantle and storage.
