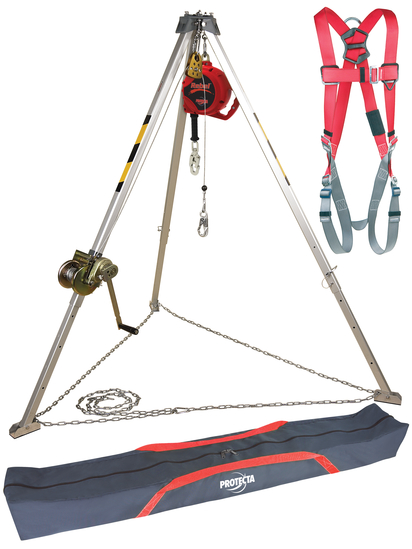

When it comes to confined space entry/rescue, it is essential that equipment operates perfectly and quickly. Lightweight, portable Protecta® aluminum tripods are ideal for confined space manhole entry and retrieval. They’re easily transported from one location to another and can be set-up by one worker. Attach one or two mechanical devices such as a winch or 3-way self retracting lifeline and you’re ready to go. Our tripods are loaded with features such as locking legs, simple detent pin style adjustment, quick-mount mechanical device bracket, safety chain to prevent movement and skid resistant tread plate soles on feet.
Telescoping adjustable locking legs
Simple detent pin adjustment in 3 in. (7.6 cm) increments offers quick and easy set-up allowing you to custom fit your work space.
50 ft. (15 m) 3/16″ (5mm) galvanized steel cable lifeline
Abrasion resistant and extremely durable lifeline construction provides added field longevity.
|Capacity||310 lbs. (140 kg) Personnel / 350 lbs. (159 kg) Materials|
|Size||50 ft. (15.2 m)|
|Lifeline Type||Galvanized Cable|
|Lifeline Length||50 ft. (15.2 m)|
|Lifeline||3/16″ (5mm) dia. 7×19 Galvanized Aircraft Wire Rope|
|Hook||Zinc Plated Steel|
|Winch/SRL Housing||Cast Aluminum, Zinc Plated Steel|
|Other Standards||ANSI Z117.1-1995, OSHA 1910.66, OSHA 1910.146, OSHA 1926.502, Capital Safety Gen. Mfg. Req.|
|Physical Weight||86.70 lbs (39.3kg)|
|Product Styles||Complete System|
|Product Types||Tripods and Systems|
|Standards||CSA A259.2.2 Type 2, Capital Safety Gen. Mfg. Req.|
