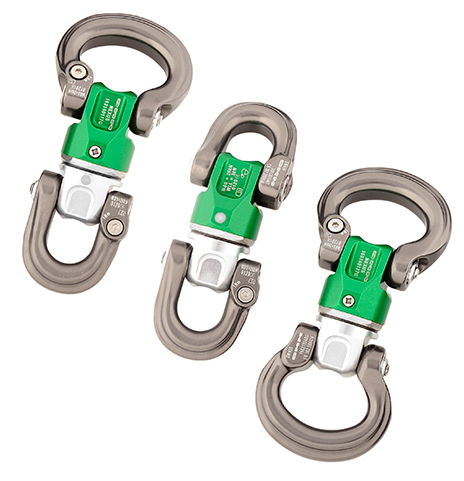

The Nexus range is a modular, directly connectable swivel system that delivers maximum freedom of movement to and from the device.
Description
The Nexus range is a modular, directly connectable swivel system that delivers maximum freedom of movement to and from the device.
Shackles can be swapped out at either end to give you a huge range of connection options to cater to the requirements of almost any torsion management scenario. The shackles themselves are connected by a high performance swivel that allows efficient torsion management.
For further information see the Compact Swivel Product Information Sheet
| Variant | Strength | WLL | Dimensions | Weight | Cat no |
|---|---|---|---|---|---|

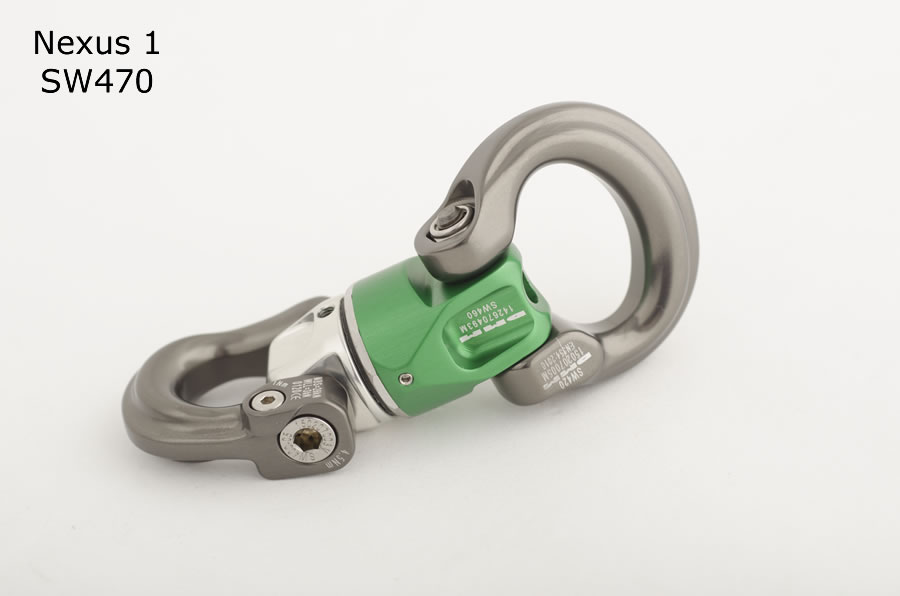

| Nexus-1 | 26kN | 3kN | 102 x 48 x 27mm | 99g | SW470 |

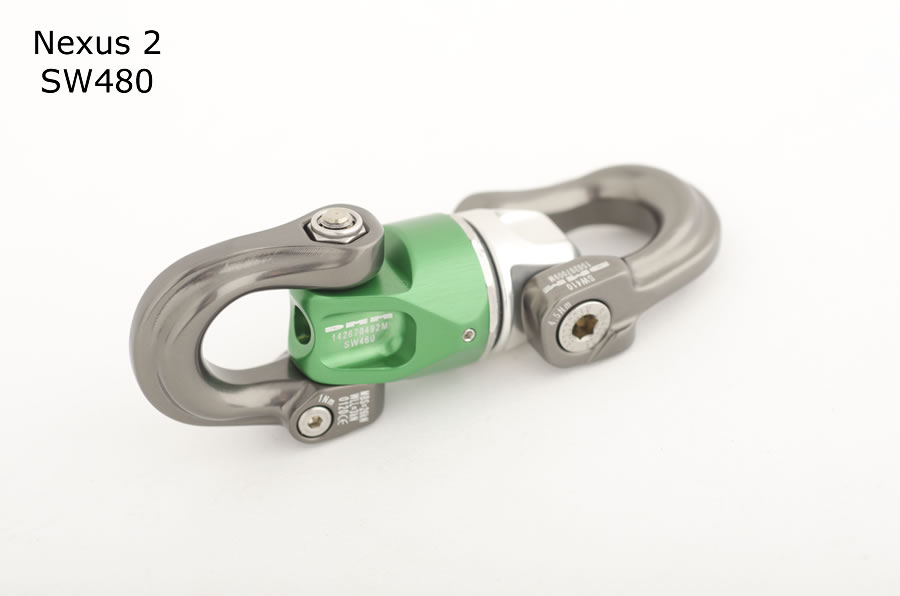

| Nexus-2 | 26kN | 3kN | 97 x 36 x 27mm | 92g | SW480 |

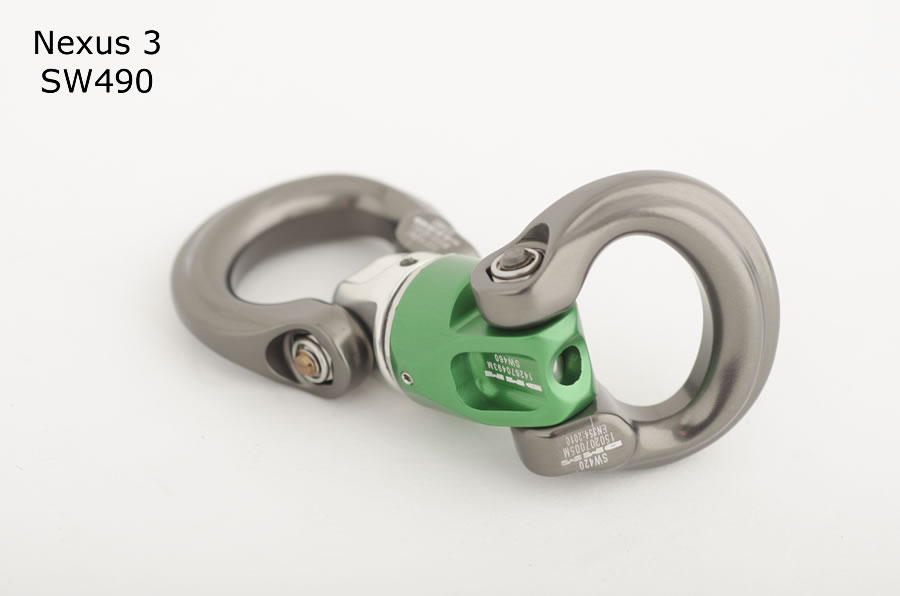

| Nexus-3 | 26kN | 3kN | 108 x 48 x 27mm | 108g | SW490 |
Features
- Textile-friendly
- Hot forged aluminium shackles and CNC’d swivels
- User maintainable grease port for bearing longevity
- Double locking high tensile stainless steel axles for durability
- Roller thrust bearings for smooth efficiency
- Shackle uses 4mm and 2mm Allen keys to ensure secure locking
- Patent pending
Additional information
| Size | 1, 2, 3 |
|---|
