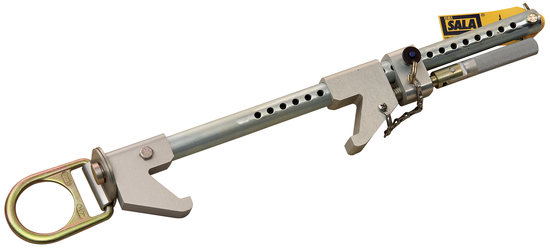

Fixed Beam Anchor

$1.00

Fixed beam anchors fits a variety of sizes up to 36 in. wide I-beams (91.4cm) up to 1/2″ to 2-1/2″ thick (1.3-6.3cm).

Clear
SKU: N/A Category:
Brands:
Brands

Description

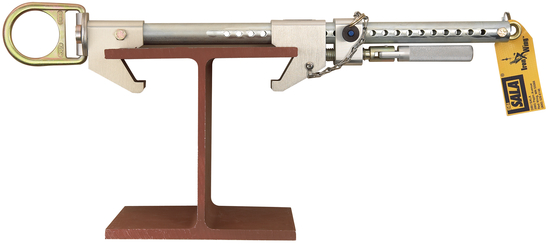

  • Installs onto a variety of wide I-beam flange up to 1-1/2″ thick (3.8cm).
  • Attach in any orientation or direction
  • Compact and lightweight design
  • High strength steel and aluminum construction
  • Extremely rugged and corrosion resistant
  • Swiveling D-ring tie-off point
  • Detent style attachment with built-in tightening handle

Specifications:

Attachment Type Info Clamp
Fits I-Beam Flange Width 2-1/2 to 36 in. See Model info for specs
Install Type Reusable
Capacity 310 lbs. (141 kg) ANSI / 420 lbs. (190 kg) OSHA
Brand DBI-SALA®
Sizes 2-1/2 in. to 36 in. wide  to 1-1/2″ thick (3.8cm)
Velocity Ship Yes
iSafe Equipped Yes
Lengths 2-1/2 in. to 36in. wide up to 1-1/2″ thick (3.8cm)
Label Vinyl
Models 2100159, 2108407, 2108408, 2108410
Physical Dimensions 20.00 x 2.50×4.00 (in)
Physical Weight 5.30 lbs (2.4kg)
Product Styles Fixed
Product Types Anchors for Steel
Standards Capital Safety Gen. Mfg. Req.

Additional information

Width

12 in. to 36 in, 2-1/2 in. to 12 in, 2-1/2 in. to 18 in, 2-1/2 in. to 24 in
