- Klettersteig shape provides extra large internal volume and gate
clearance
Description
Any Kwiklock connector is best suited to applications when attachment/detachment is frequent as it auto-locks almost instantaneously and is simple to use.
The ANSI compliant Kwiklock barrel vastly increases the gate push-in and side push strength making it an ideal option when all round strength and security are also key.
- Conforms to EN362:2004/B, CAN/CSA Z259.12 (2011) and ANSI Z359.12 (2009)
- Also available pre-drilled with a captive bar option conforming to EN362:2004/T

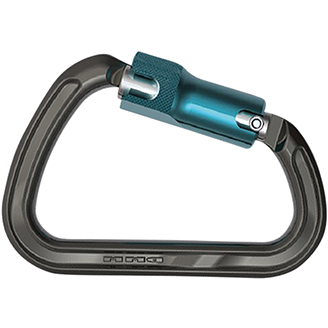

- Hot Forged Klettersteig shape provides extra large internal volume and gate clearance
- I-Beam section for increased strength to weight ratio
- Anodised to BS EN 7599:2010 AA10 Sealed for corrosion protection
- Particularly suitable for clipping safety lines and anchor points
- Individually marked for traceability
| Variant | Strength (Gate Closed) | Gate Opening | Weight | Colour | Cat no |
|---|---|---|---|---|---|
| Klettersteig KL ANSI | 30kN | 21mm | 104g | BLT | A843ANSI |
