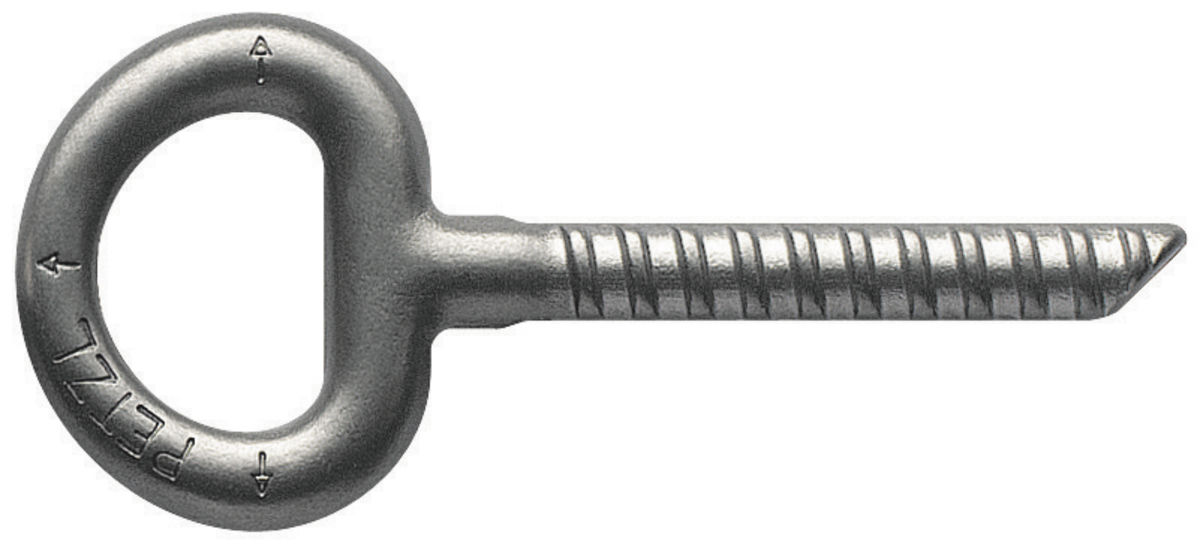

Forged stainless steel glue-in bolt
Description
Description
- 10 x 70 mm
Specifications
- Material(s): forged stainless steel
- Certification(s): EN 959
References
| References | P55 |
|---|---|
| Diameter | 10 mm |
| Weight | 95 g |
| Granite, gneiss > 80 MPa: preliminary testing suggested | |
| > 80 MPa: preliminary testing suggested | |
| Limestone and medium sandstone 80 MPa to 45 MPa: preliminary testing suggested | |
| Soft rock (soft sandstone, limestone) < 45 MPa: preliminary testing required | |
| Very high quality concrete (work of art) > 50 MPa: preliminary testing suggested | |
| Medium quality concrete 25 < x < 50 MPa: preliminary testing suggested | |
| Length | 7 cm |
| Drilling depth | 7-7,5 cm |
| Drilling diameter | 12 mm |
| Type of installation | P56 glue (or other glues approved by Petzl) |
| Suggested drying time | 40 min -> 10 h |
| Resistance to cutting on concrete 50 MPa | 40 kN |
| Pull-out strength in concrete 50 MPa | 35 kN |
| Times are given for P56 glue (times may vary depending on the glue used and on the external environment) | |
| Guarantee | 3 years |
