COEUR PULSE

Removable 12 mm anchor with locking function

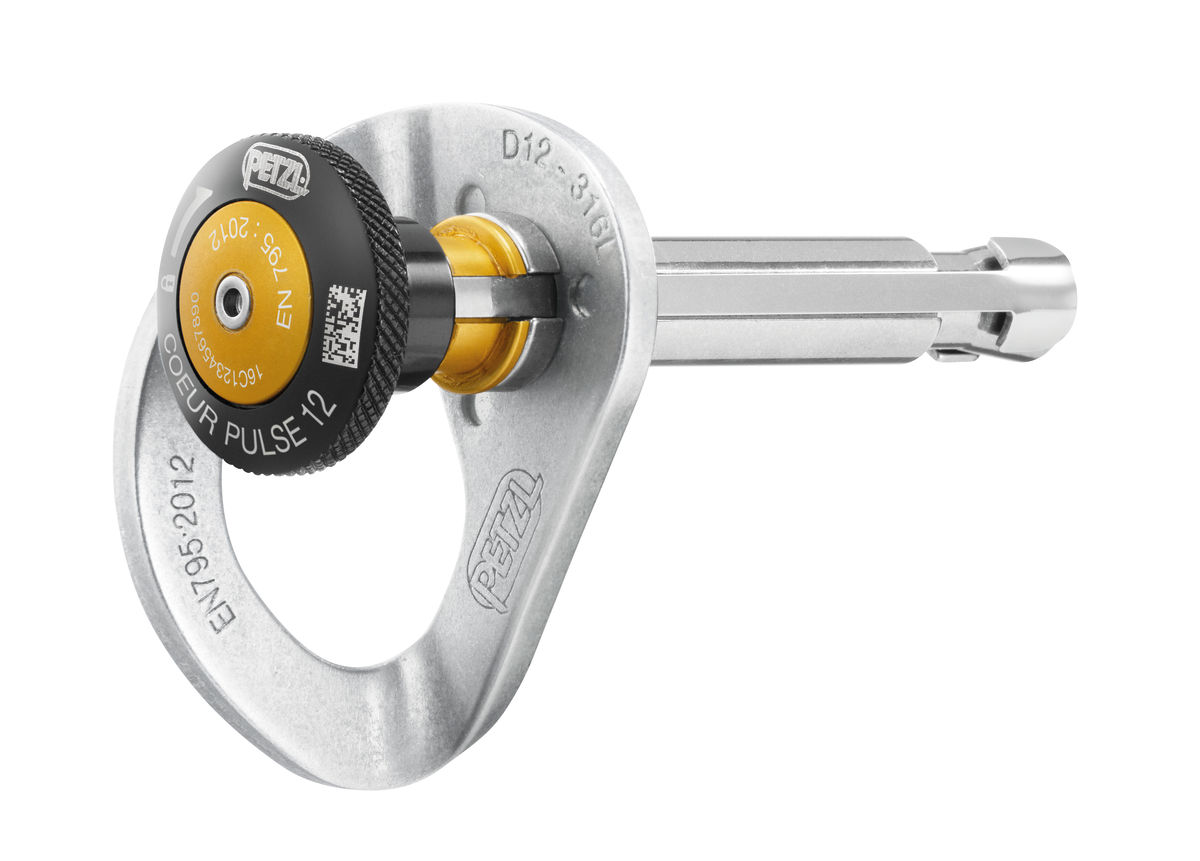

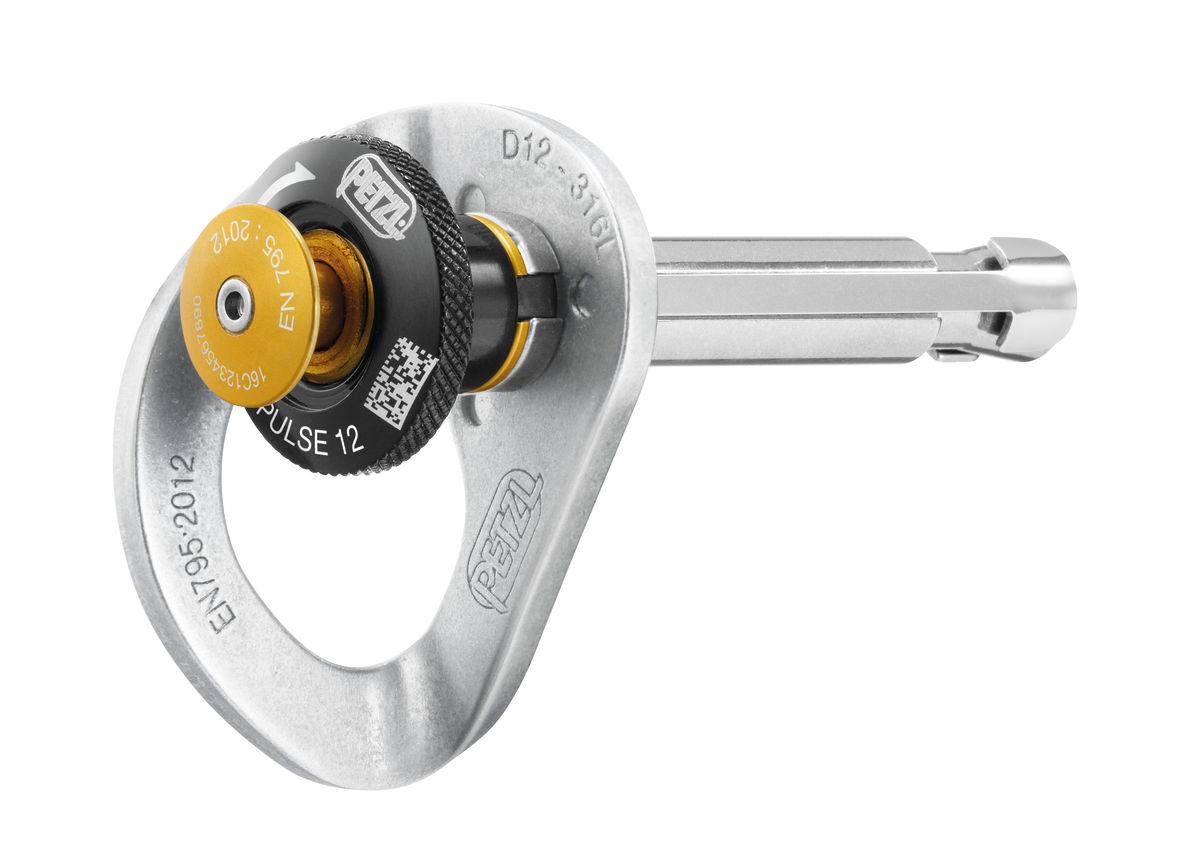

The COEUR PULSE is a 12 mm removable stainless steel anchor that can be installed and removed very simply and rapidly, without tools. The locking function limits the risk of involuntary removal.

SKU: P37S 12 Category:
Brands:
Brands

Description

Description

  • Easy to use:

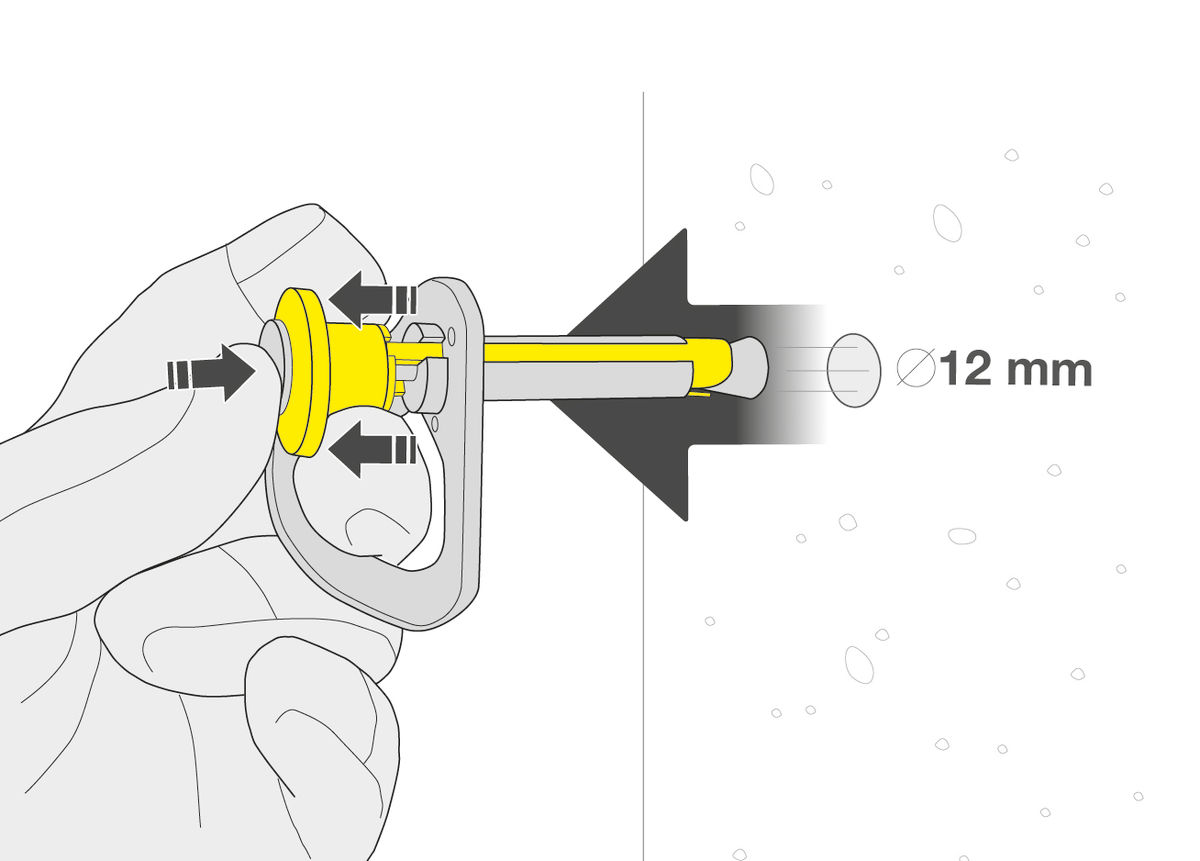

    – simple, rapid installation and removal, without tools, allowing it to be reused

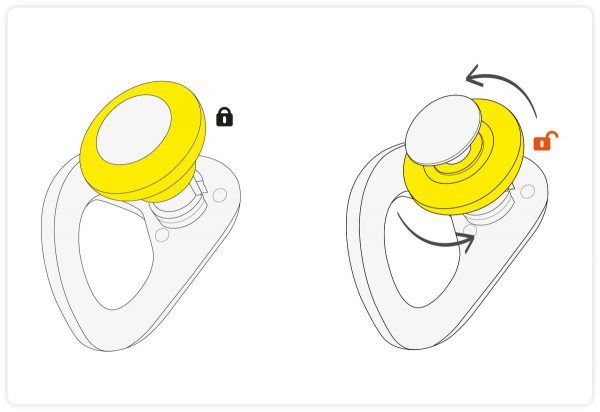

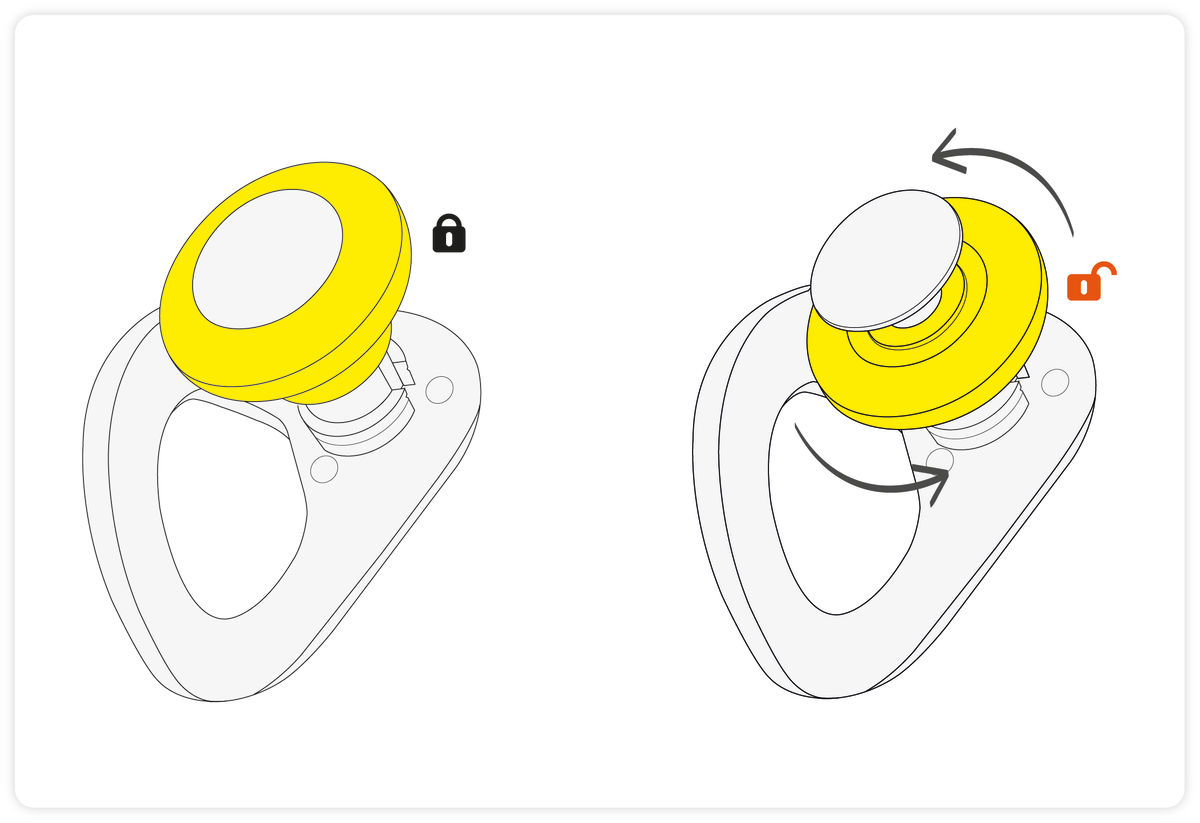

    – locking function limits the risk of involuntary removal

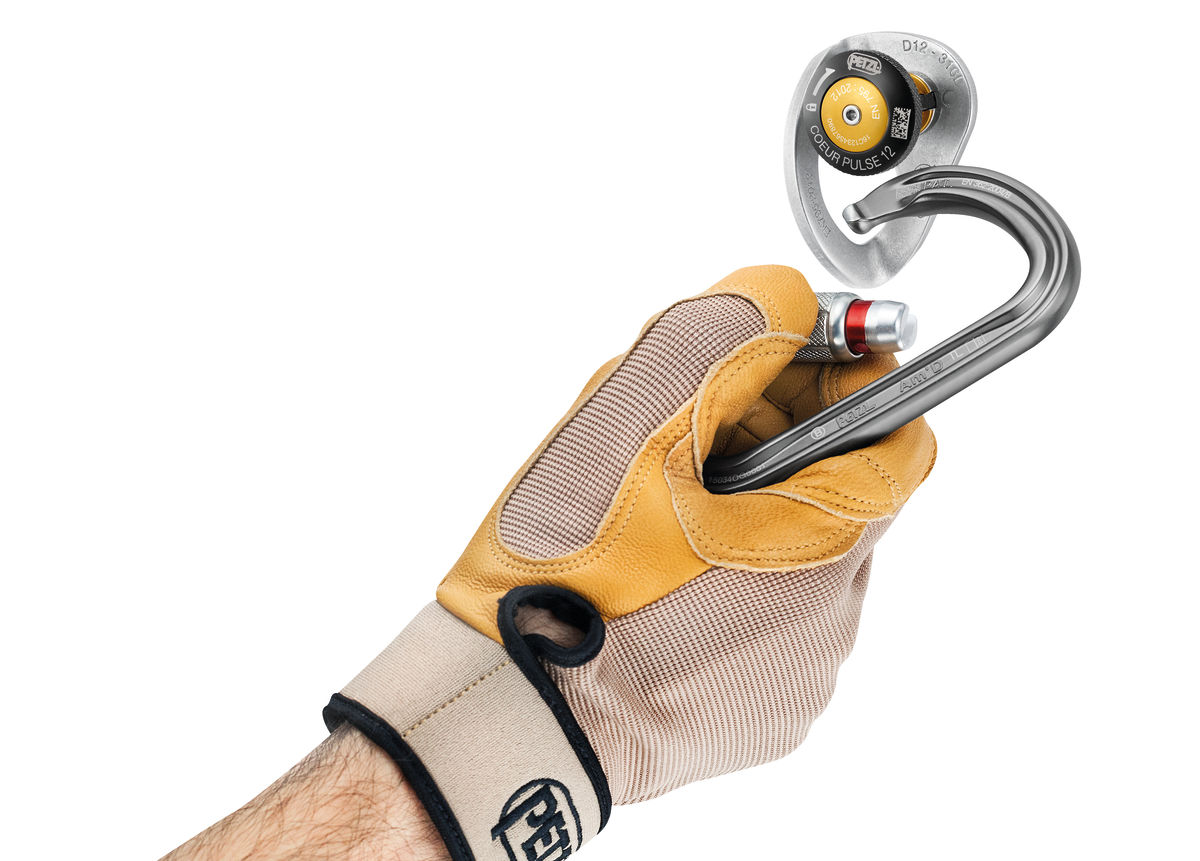

  • Easy clipping:

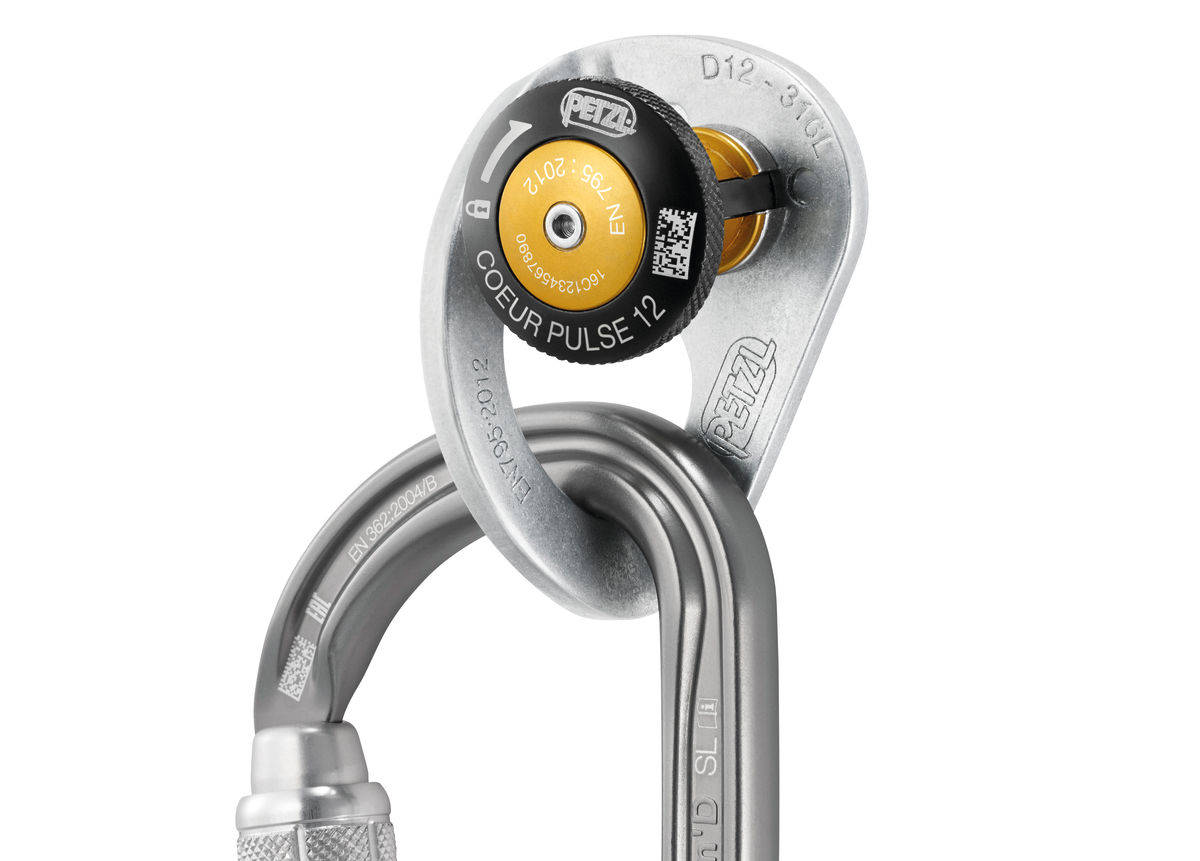

    – the wide, ergonomic connection hole facilitates carabiner clipping
    – the width of the hole allows installation of two carabiners at the same time
  • Prevents wear of carabiners thanks to the thickness of the hanger and the rounded edges of the connection hole

    NB : For optimal use of the anchor, the hole must be perfectly cylindrical. To this end, opt for a drill bit with three or four cutting edges

Specifications

  • Material(s): 316L stainless steel
  • Certification(s): CE EN 795 B

References

References P37S 12
Diameter 12 mm
Weight 140 g
Drilling depth 6,5 cm
Drilling diameter 12 mm
Resistance to cutting on concrete 50 MPa 25 kN
Pull-out strength in concrete 50 MPa 20 kN
Guarantee 3 years
Packing 1
