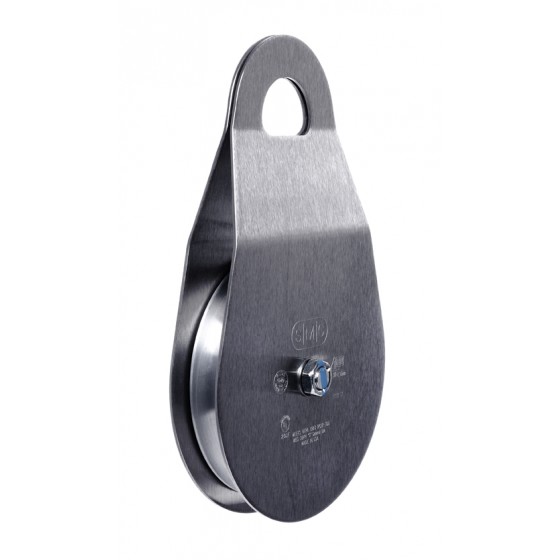

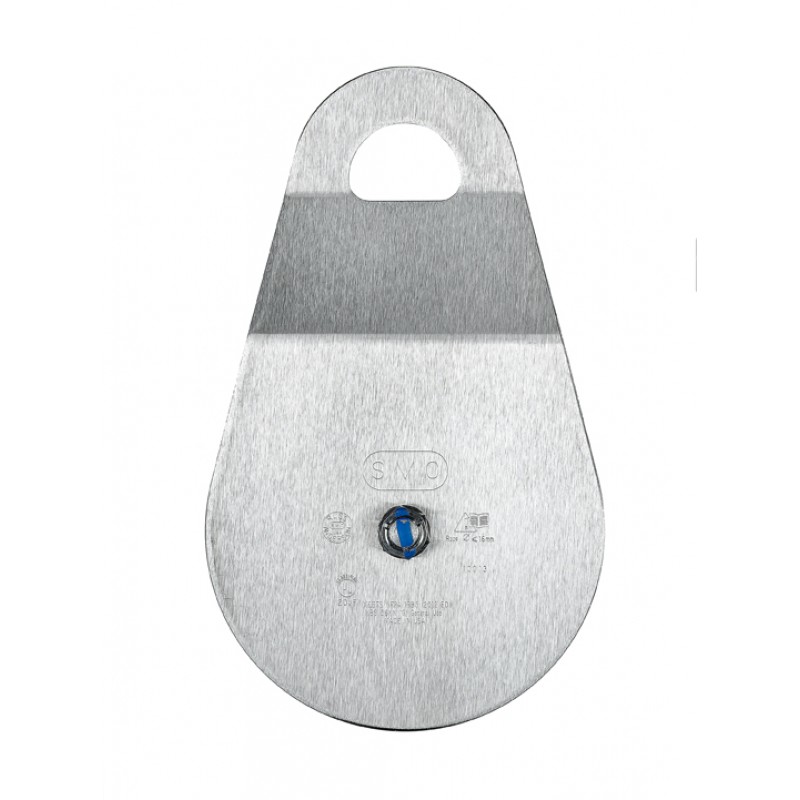

3″ SMC/ RA Single Stainless Steel Pulley

These are the “original” Russ Anderson/SMC pulleys that are legendary throughout the fire, rescue and work-related professions. The most widely used pulleys of their kind, SMC/RA pulleys are well-known for delivering the highest levels of performance, quality and durability as demanded by rescue and industry professionals alike.

SKU: NFPA151000 Category:
Brands:
Brands

Product Description

Offered in a choice of either Oilite or sealed Ball Bearings, the SMC/RA series of pulleys include singles and doubles ranging in size and style from a 2” single to a 4” double. Oilite (sintered bronze) bearings are popular for delivering reliable performance at a reduced cost.  The attachment hole is sized to accept large rescue carabiners with sufficient room for the carabiner to rotate freely and easily.

FEATURES AND BENEFITS:

  • UL Certified to NFPA1983 “G” General Use.
  • Matched double-bend side plates help eliminate compression under load.
  • Solid side plates help to keep dirt and debris out of the rope track.
  • The axle-nuts are double locked to the steel axle and marked with a witness line to help detect any loosening.
  • Made in the USA.

Specifications:

  • Model #: NFPA151000 (Oilite Bushing)
  • Type: Single
  • Axle: Stainless
  • Bearing: Oilite
  • Material: Stainless Steel
  • Dimensions: 6.6” x 3.6” x 1.5”
  • Weight: 16 oz (454g)
  • Max. Rope: 5/8” (16mm)
  • Sheave: 3” aluminum
  • 3 Sigma MBS: 51kN (11,465 lbf)
  • NFPA1983 Certified
  • Made In USA
Certifications

Certified by Underwriter’s Laboratories to exceed the NFPA 1983 “G” – General Use requirement of 40kN.
